Product specifications

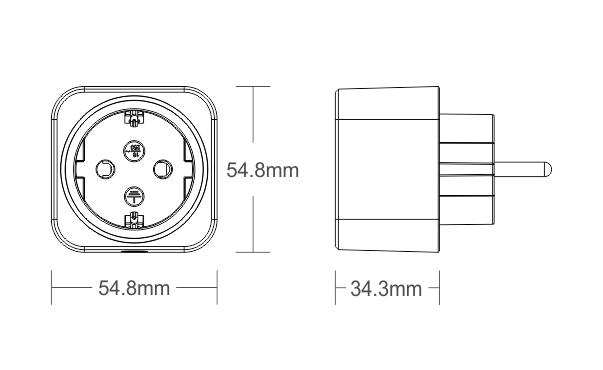

Smart Meter Plug EU Dimensions
Installation
wall Plug
Operating Environment
Operating Temperature /Humidity: 0℃ ~40℃ 10%~90% (non-condensing)
Storage Temperature/Humidity: -10℃ ~70℃ 5%~90%(non-condensing)
Case Temperature :60℃ under Environmental Temperature of 25℃
Warranty
1 year
Certification
CE
Environmental Directive
Compatible to WEEE
Compatible to RoHS
AC Plug
Rating:16A 250V
Plug: IEC60884
AC Outlet
Rating:16A 250V
Receptacle: IEC60884
Key
Power ON/OFF
LED indicator
Power
Power Input
220~240VAC 50Hz
Power Consumption
Maximum 1.2 Watts, Minimum 0.4 Watts
Rated Loading
3680W,16A/230V
Over-current protection
17.6A
Power measurement
Range 0-4200W, 0.5W accuracy,Tolerance: ±2%
Communication
BLE( Bluetooth 4.0 Low Energy)
Range
15 M
Frequency Range
2.379GHz~2.496GHz,normally:2.4GHz
RF output power
0dBm
Receive Sensitivity
-94dBm
Transmission Rate
1Mbps
Language
English German French Italian Spanish
OS Support
iOS 6+, Android 4.3+
